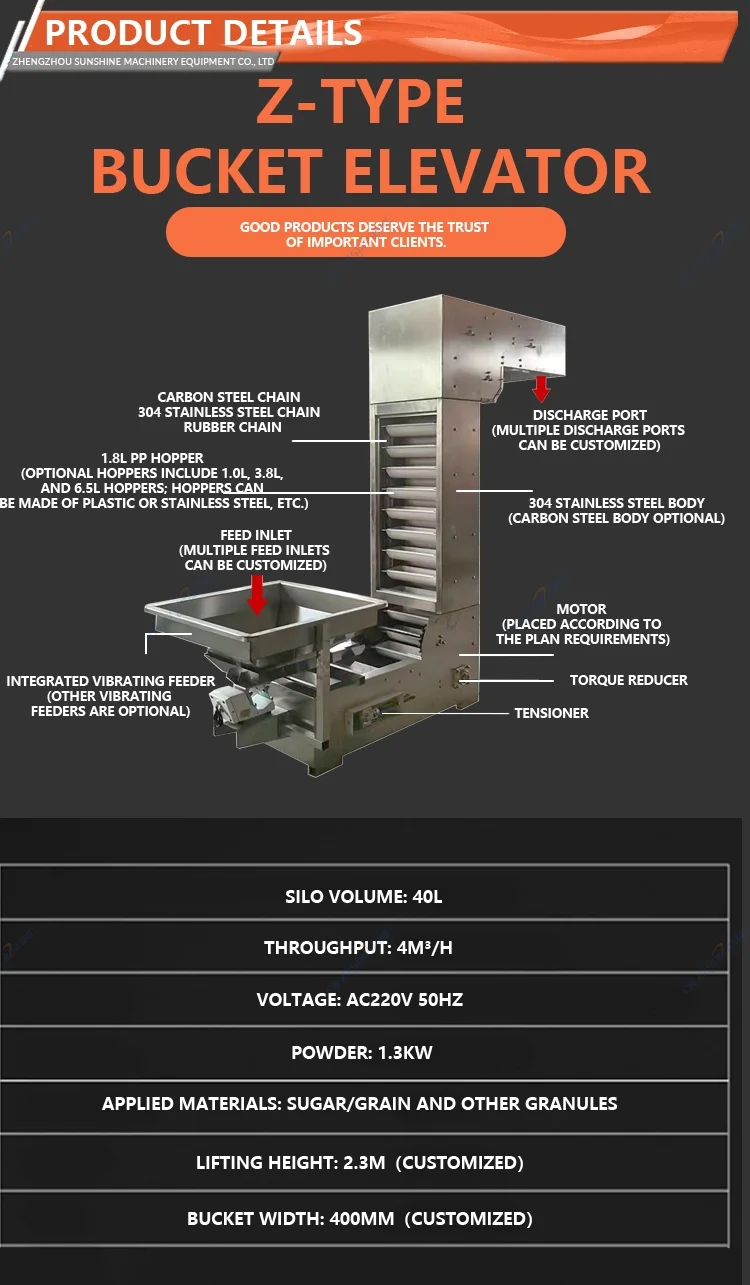

Machine Introduction

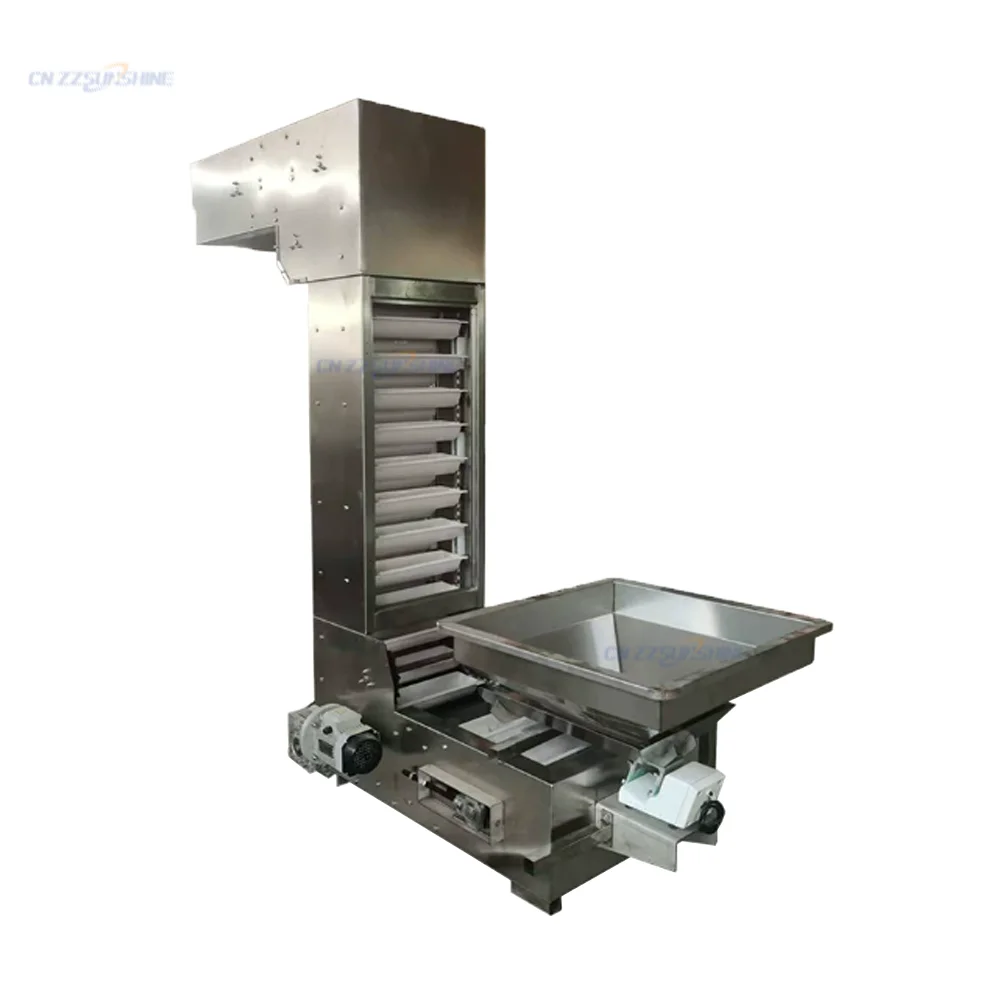

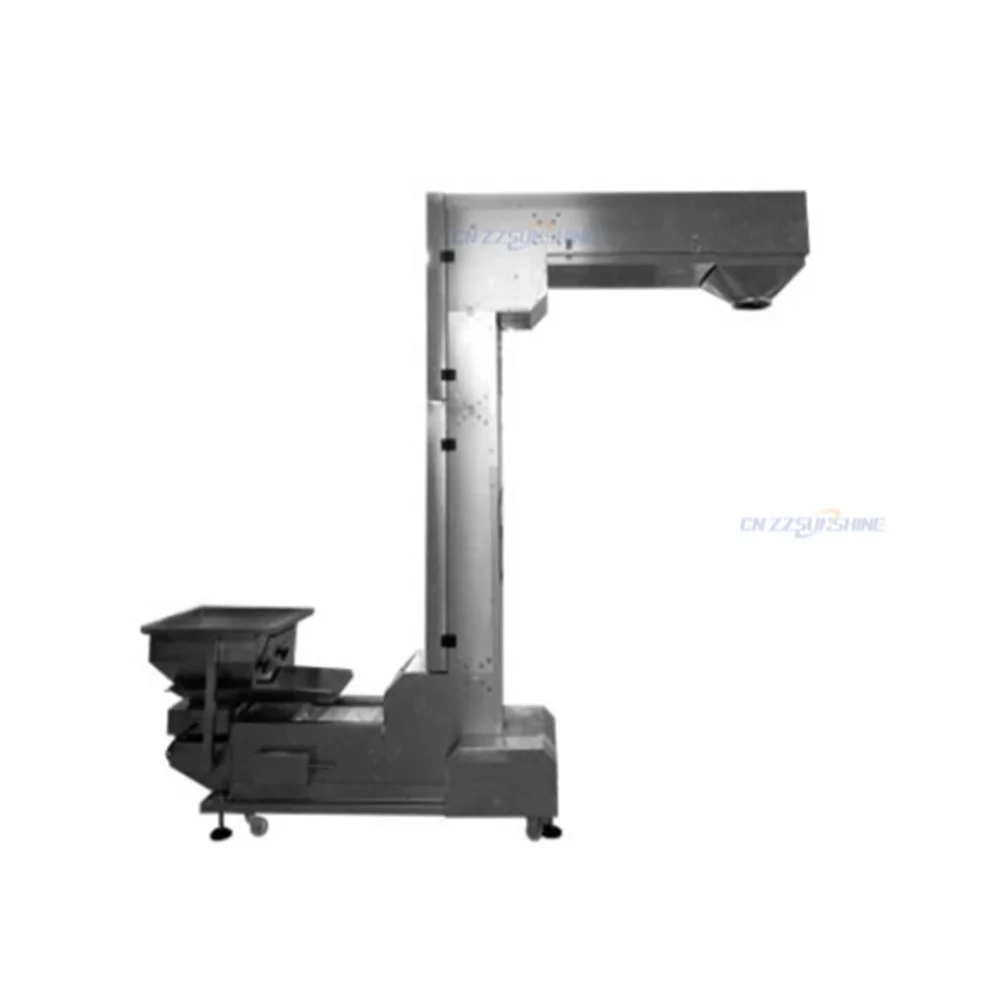

Z-type feeder is a vertical lifting equipment suitable for conveying granular, block, and powder materials, widely used in industries such as food, chemical, and pharmaceutical. Its characteristics include: saving floor space, low power loss, minimal material damage, and a maximum conveying height of up to 10 meters; It can be customized according to materials, conveying capacity, and height. The lifting bucket is available in PP and stainless steel materials.

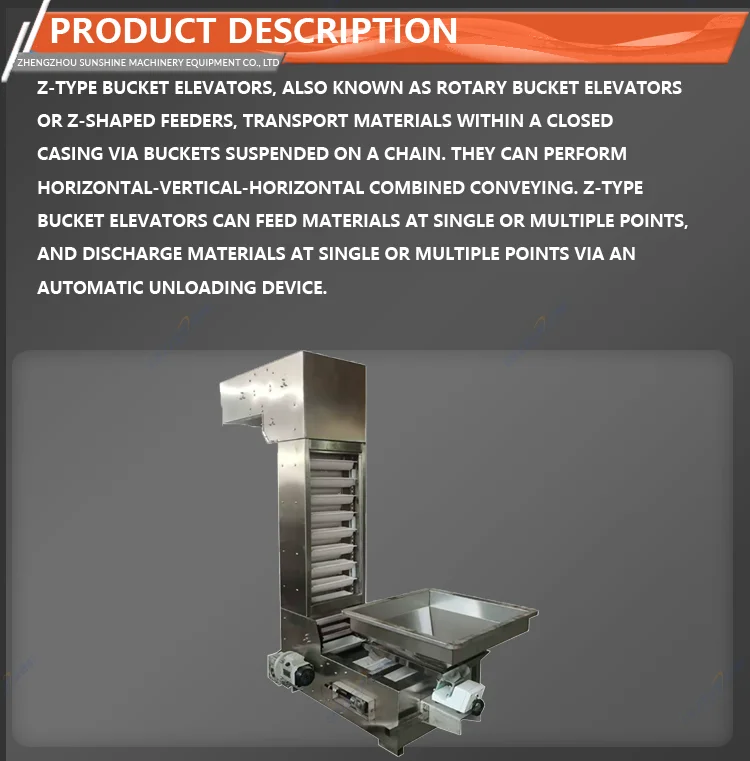

Working principle: The material enters the hopper from the feeding port of the bottom horizontal section and is loaded through inflow or extraction design. The driving device drives the chain or belt to run synchronously, and the hopper climbs along the vertical section to the top. After bypassing the top sprocket, it turns to the horizontal section and pours the material to the discharge port through centrifugal force or gravity, completing the "horizontal vertical horizontal" conveying process.
Application areas: Widely used in industries such as food, chemical, plastic, grain, hardware, etc., it can transport various materials such as powder, particle, small block, etc., such as flour, plastic particles, fertilizers, sand and gravel.

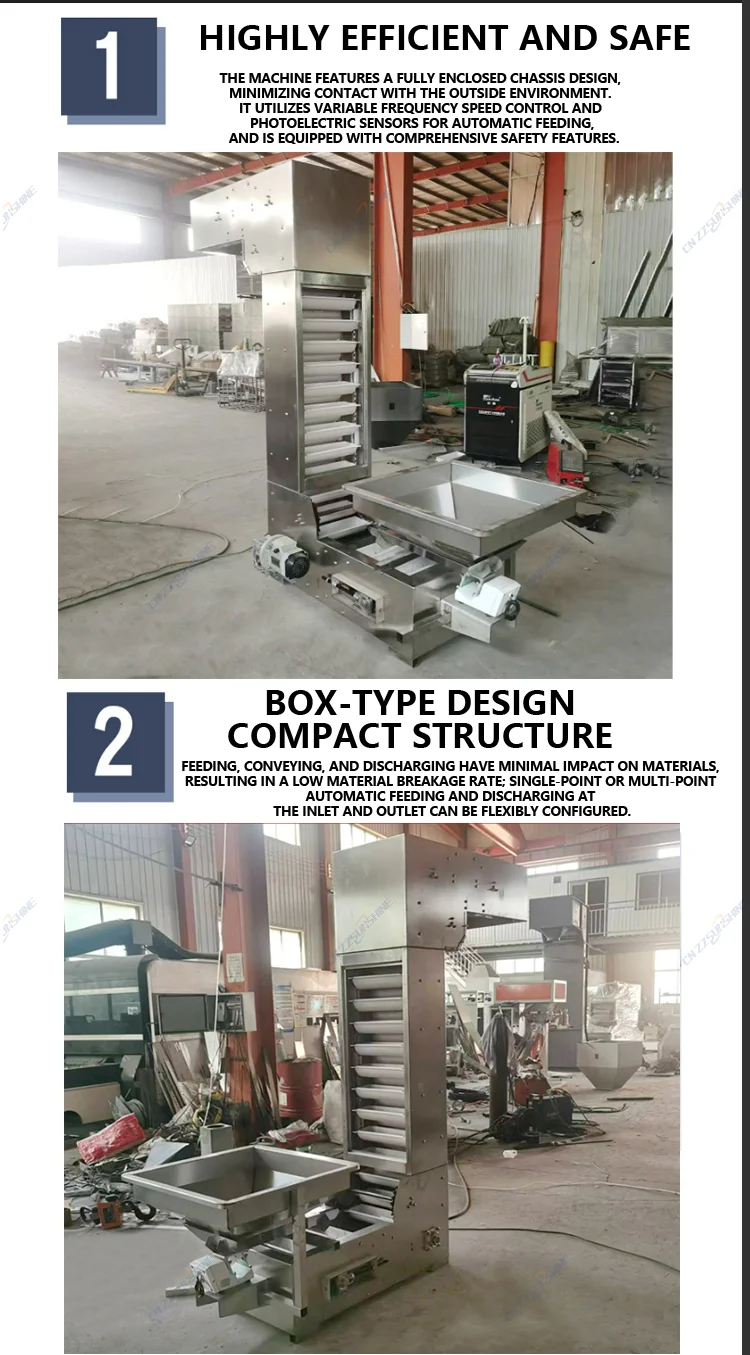

Performance advantages: With low damage rate, it can effectively protect fragile materials; Fully enclosed structure, environmentally friendly and pollution-free; High space utilization rate, which can save more than 50% of the floor area; Support multi-point loading and unloading, able to flexibly connect production lines; Equipped with a PLC control system, it can achieve intelligent operation.
Comoany Information
Zhengzhou Sunshine Machinery Equipment Co., Ltd. is a cross-border e- business enterprise which focuses on small and medium-sized machinery and equipment series products and peripheral products.
Our company is mainly engaged in small and medium-sized soap production equipment, oil refining equipment, soap grain oil processing production line, mixing equipment and packaging equipment and other chemical products.
The products are exported to all over the world, won the praise of many cooperative customers, has become an important member of international trade enterprises in Henan Province.
The company always adheres to the enterprise spirit of ‘integrity’, ‘self-discipline’ and ‘gratitude’. With a strong cross-border network sales team and perfect supply chain system. Timely supply and thoughtful service.
Certification
Client Feedback
FAQ
Q1: How to find a machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to use?
2. How much capacity per hour do you need?
3. You requirement for the machines.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality. And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
1.Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
