Product Details

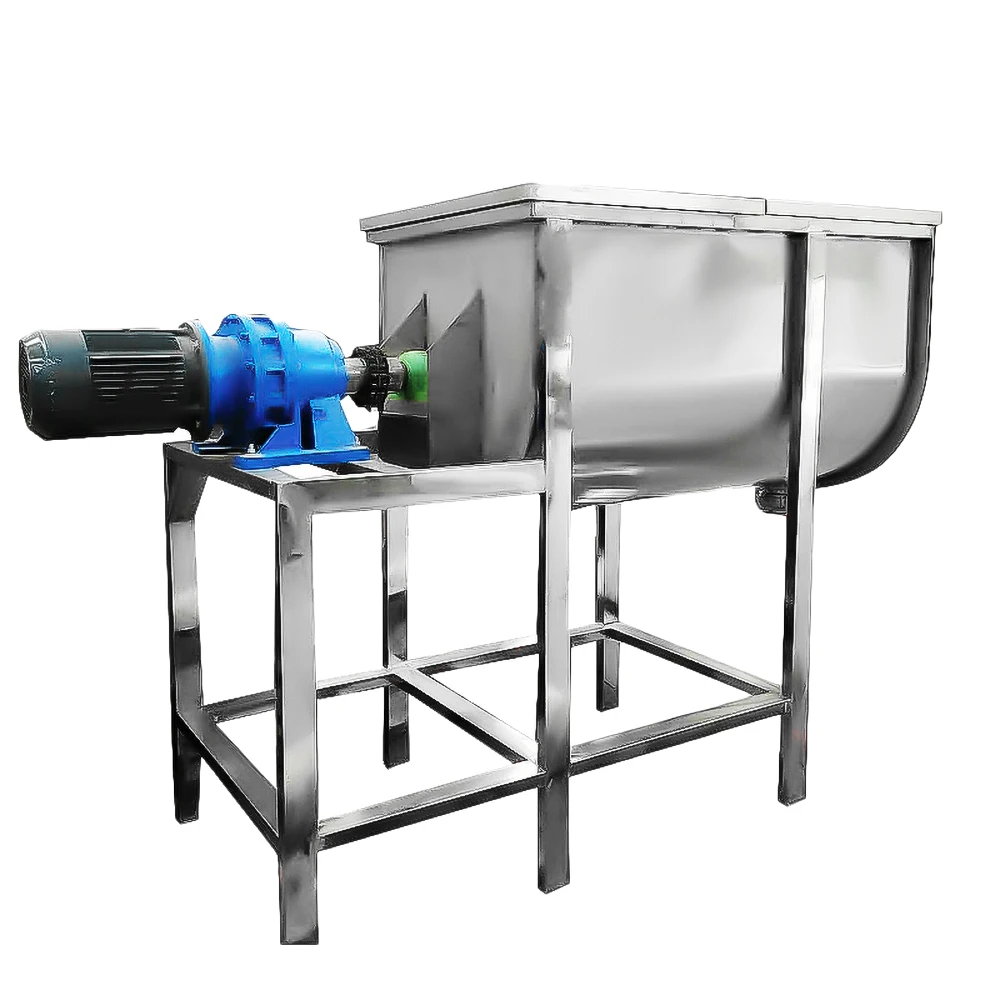

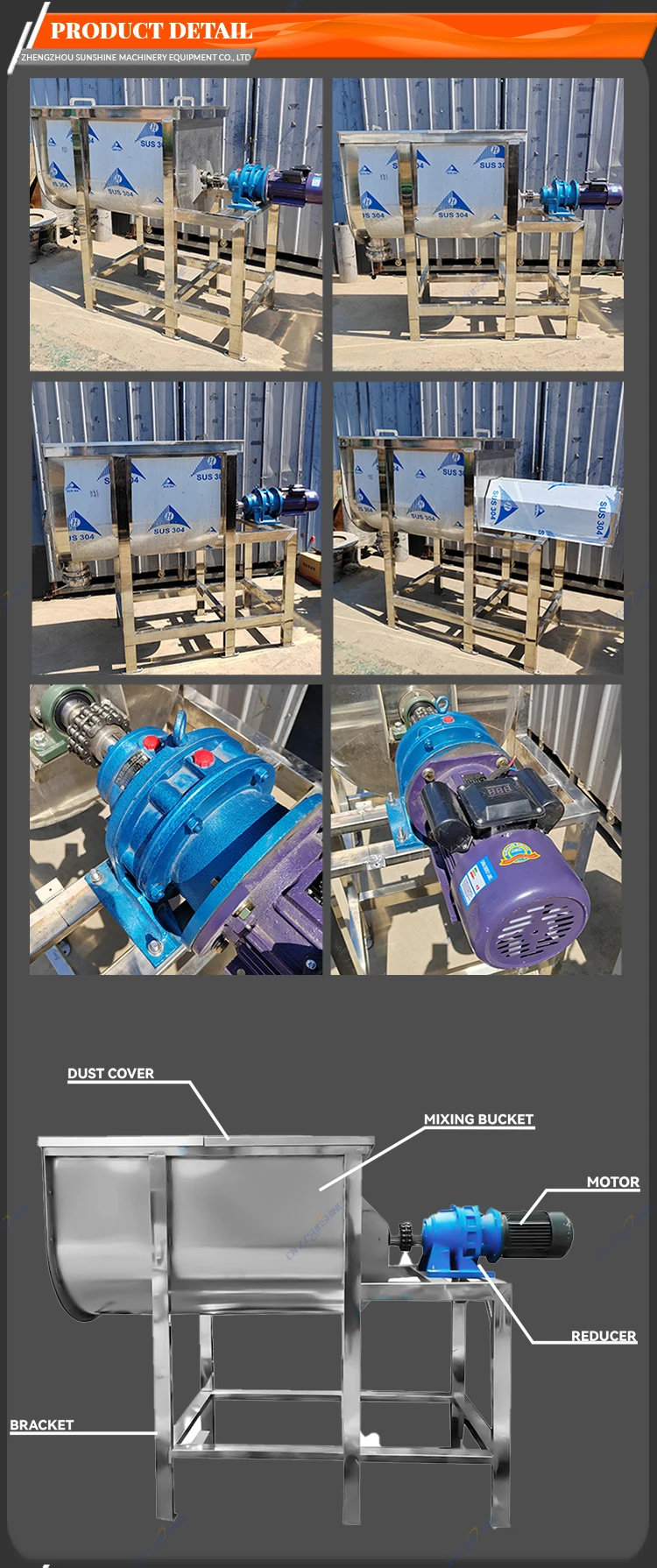

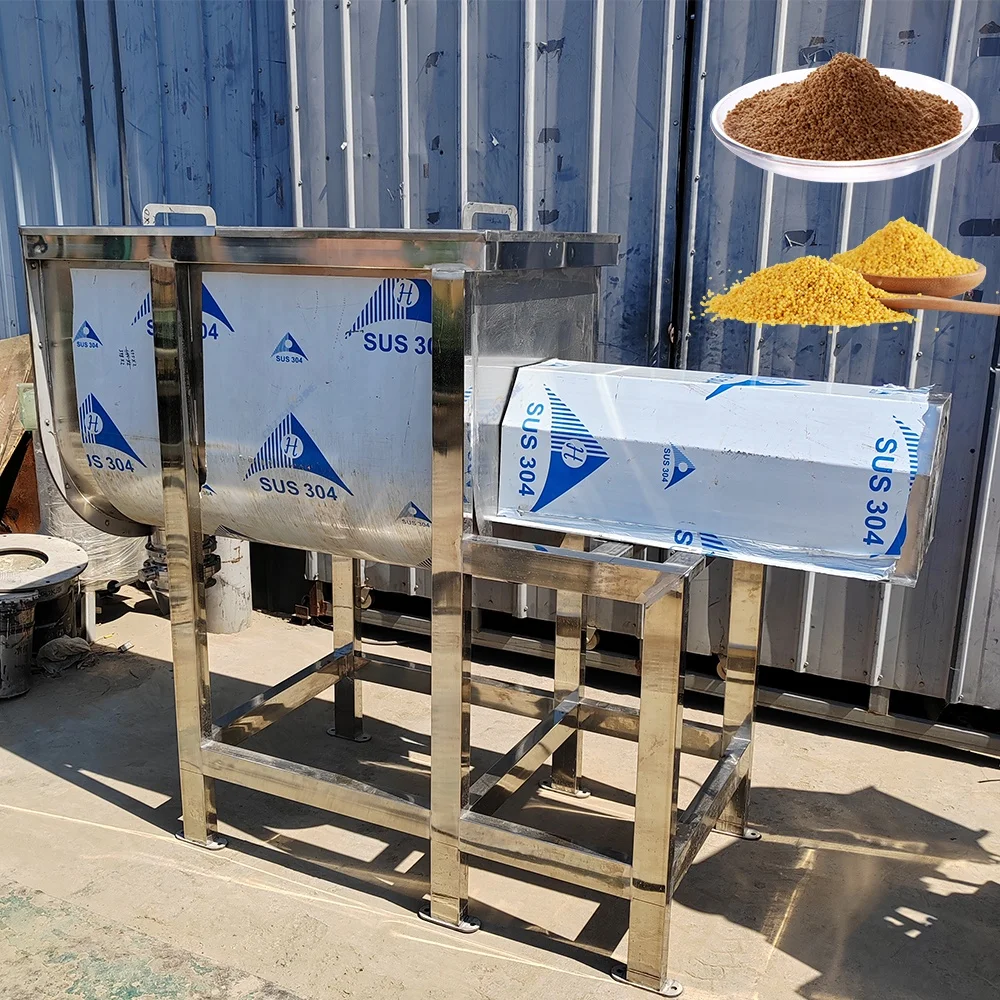

The spiral belt mixer consists of a mixing bin, a stirrer, and a driving device. A double-layer opposite direction spiral belt is installed inside the U-shaped tubular bin to wrap the stirrer shaft. The outer spiral belt is driven by power and its winding form matches the rotation direction to push the material from both ends of the U-shaped bin to the central area, while the inner spiral belt pushes the material from the middle to both ends, forming convective mixing.
A discharge port is opened at the center of the bottom of the horizontal cylinder of the mixer, and the spiral structure of the outer layer of the spiral belt cooperates with the rotation direction of the main shaft to drive the material inside the cylinder wall to the central discharge port for discharge, ensuring that there are no blind spots for material discharge inside the cylinder.
The horizontal screw belt mixer is applied to the mixing of solid (i.e. powder to powder) and slurry (i.e. powder to slurry) in pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, compound fertilizers, etc. It is also particularly suitable for mixing viscous materials.

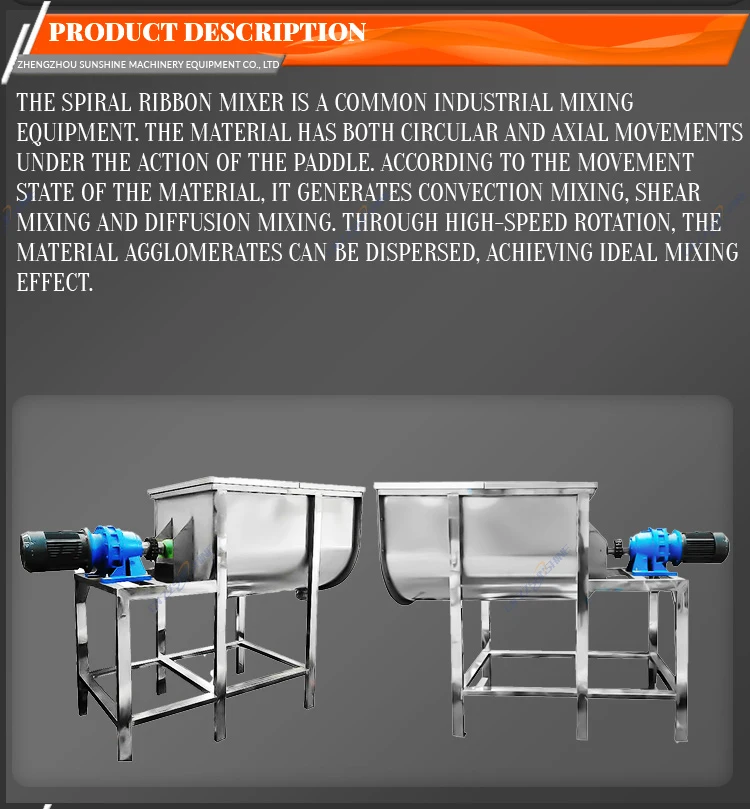

The screw belt mixer is driven by the inner and outer diameter screw bars installed on the mixing shaft to move the material inside the drum, causing the mixer to extensively flip the material inside the drum. In terms of the structure of the mixer, the screw bars are designed as inner and outer, and left and right opposite screw bars. When the mixer is working, the inner screw bar drives the material near the axis to rotate around the axis, pushing it from the inside to both sides in the axial direction. The outer screw bar drives the material near the barrel wall to rotate around the axis, pushing it from both sides to the inside in the axial direction. This causes the material to circulate and shear mix inside the barrel, achieving rapid and uniform mixing of the material in a short period of time.


Function
Powder/Solid Mixing
Advantages
Easy Operate/Stable/Labor Saving/High Efficiency
Package Method
Wooden Case
Core Components
Motor, Rotary Powder Mixer
Material Processed
Chemicals, Food
Speed Control
Variable Speed


Company Information

Zhengzhou Sunshine Machinery Equipment Co., Ltd. is a cross-border e- business enterprise which focuses on small and medium-sized machinery and equipment series products and peripheral products.

Our company is mainly engaged in small and medium-sized soap production equipment, oil refining equipment, soap grain oil processing production line, mixing equipment and packaging equipment and other chemical products.

The products are exported to all over the world, won the praise of many cooperative customers, has become an important member of international trade enterprises in Henan Province.

The company always adheres to the enterprise spirit of 'integrity', 'self-discipline' and 'gratitude'. With a strong cross-border network sales team and perfect supply chain system. Timely supply and thoughtful service.


Certification


FAQ

Q1: How to find a machine suitable for my product?

Tell us about your product details and packing requirements.

1. What kind of product you would like to use?

2. How much capacity per hour do you need?

3. You requirement for the machines.

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality. And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate. And it is available for us to use trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?

1.Sign the Contact

2.Arrange 50% deposit to our factory

3.Factory arrange production

4.Testing & detecting the machine before shipping

5.Inspected by customer or third agency through online or site test.

6.Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?

1.Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
